Union RetroV Variable Power 3-4 Overhead Door Closer

The Union RetroV variable power overhead door closer features identical fixing dimensions and footprint to popular UK door closer designs including Briton 2003, 2004 and 2003V, making it ideal for both 1st fit or replacement / retrofit applications

Sympathetically designed to blend with other traditional door closers that have been used or are currently fixed to other doors nearby, this unit is suitable for both fire resistant timber and metal doors as well as other internal doors

It has been fully tested as both size EN3 and EN4 in all 3 fixing positions, its wind through adjustable rack & pinion system gives it adjustable closing forces to suit the required application.

It has an aluminium body with a steel arm-set. The independent door speed and latch adjustment controls are concealed as are its fixings once the unit is installed.

The Union RetroV door closer is suitable for use with doors up to 1100 mm (1.1 metres) wide and up to 80Kg in weight, and allows opening of up to 130º.

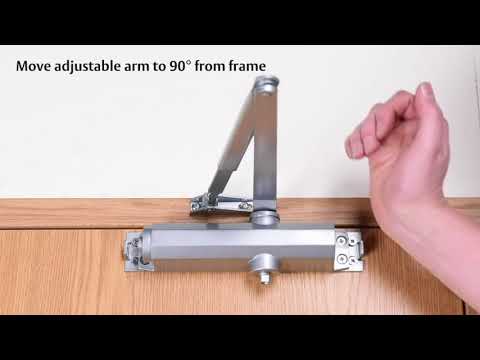

The unit comes complete with screws, parallel arm bracket, fully adjustable arm-set and easy to use template with pictorial fitting instructions.

Key Features include

 Fully tested as both size EN3 and EN4 in all 3 fixing positions
 Independent door speed and latch controls
 Concealed fixings and adjustment controls
 Non-handed with adjustable power for maximum flexibility
 Identical fixing dimensions and footprint to popular UK door closers

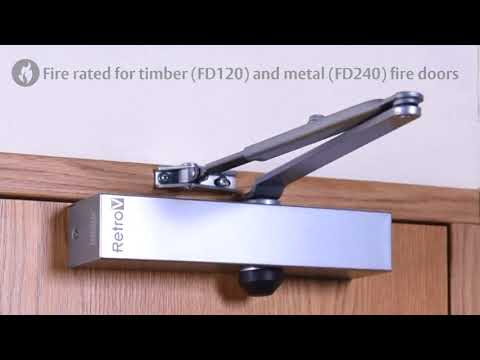

 Fire rated for timber (FD120) and metal (FD240) fire doors

Dimensions / Specifications

   Body Depth: 58mm
   Body Height: 48mm
   Body Width: 250mm

   Max Door Weight: 80Kg
   Max Door Width: 1100mm
   Opening Angle - Max 130°
   Strength Size: 3 to 4

This overhead door closer is the ideal product for use with the DoorSense Fire Door Retainer
